UPR Products Billet Differential Cover strengthens your Ford Mustang 8.8 Rear End

UPR Products has released a billet differential cover that will fit any Ford Mustang (1979 – 2014) with a Ford 8.8 inch rear end. Sure it’s an awesome looking product but why do you need it on your Mustang? Continue reading below, as I go over the benefits you could expect when upgrading your factory differential cover to the UPR Billet Differential Cover.

Images by: @jaygray757 and @ls7hntr

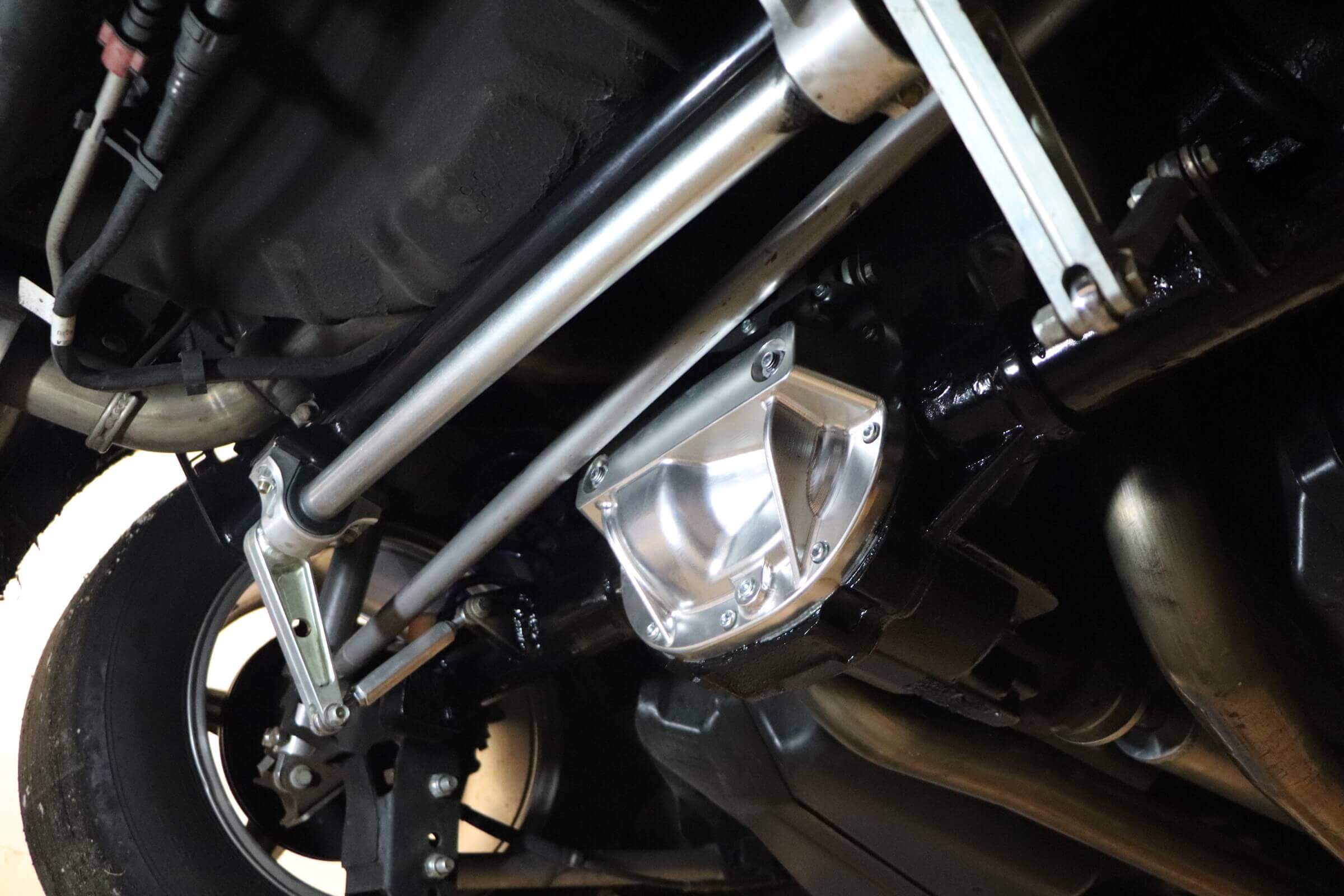

upr products billet differential cover

What is a differential cover?

Differential covers serve a few different purposes. The primary purpose of a differential cover is sealing off the axle once the differential, gears, and axles have been installed. Differential covers can be made from several different materials. Most OEM Mustang covers are made from cast or stamped metals which can tend to break under higher loads of horsepower.

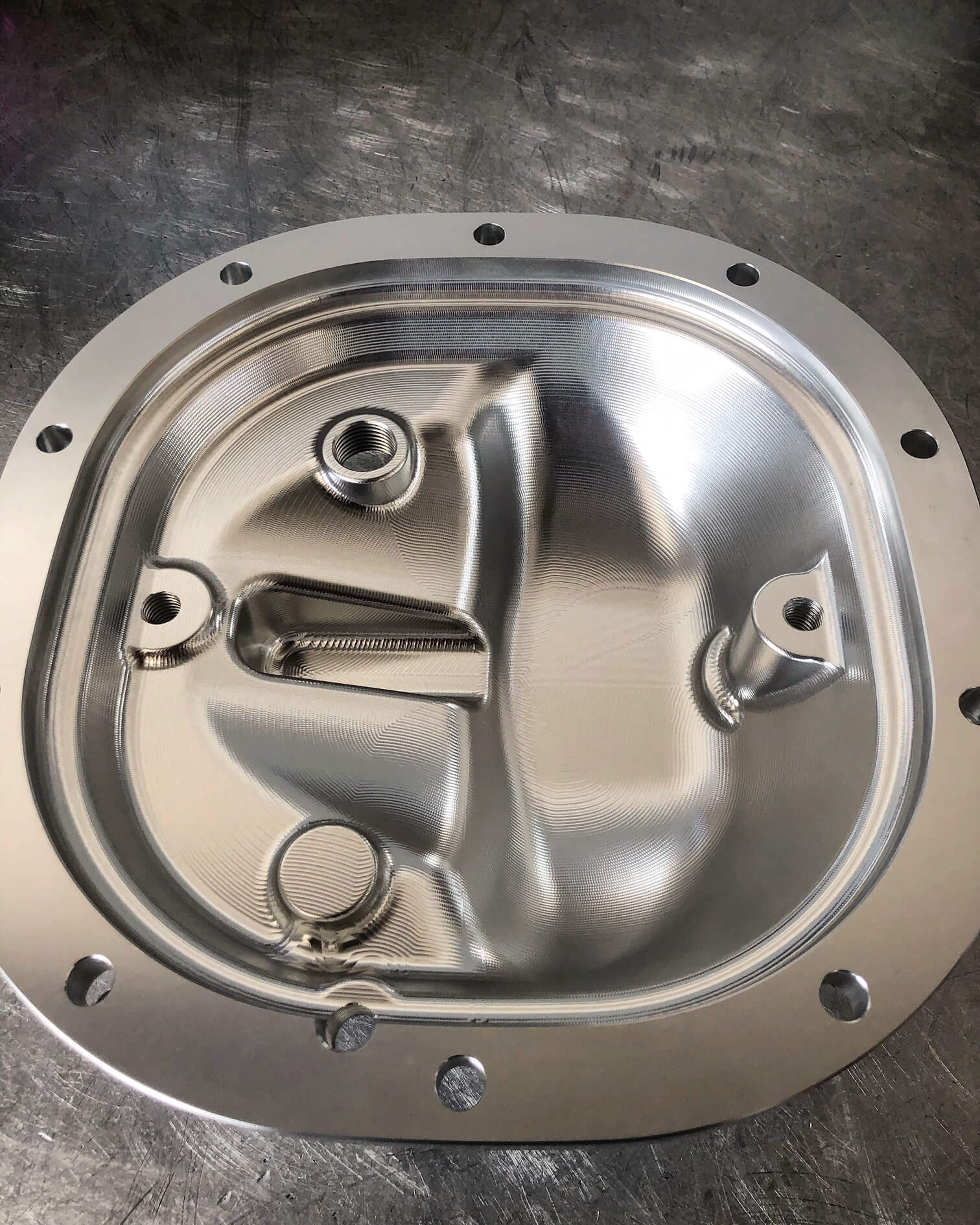

upr products billet differential cover

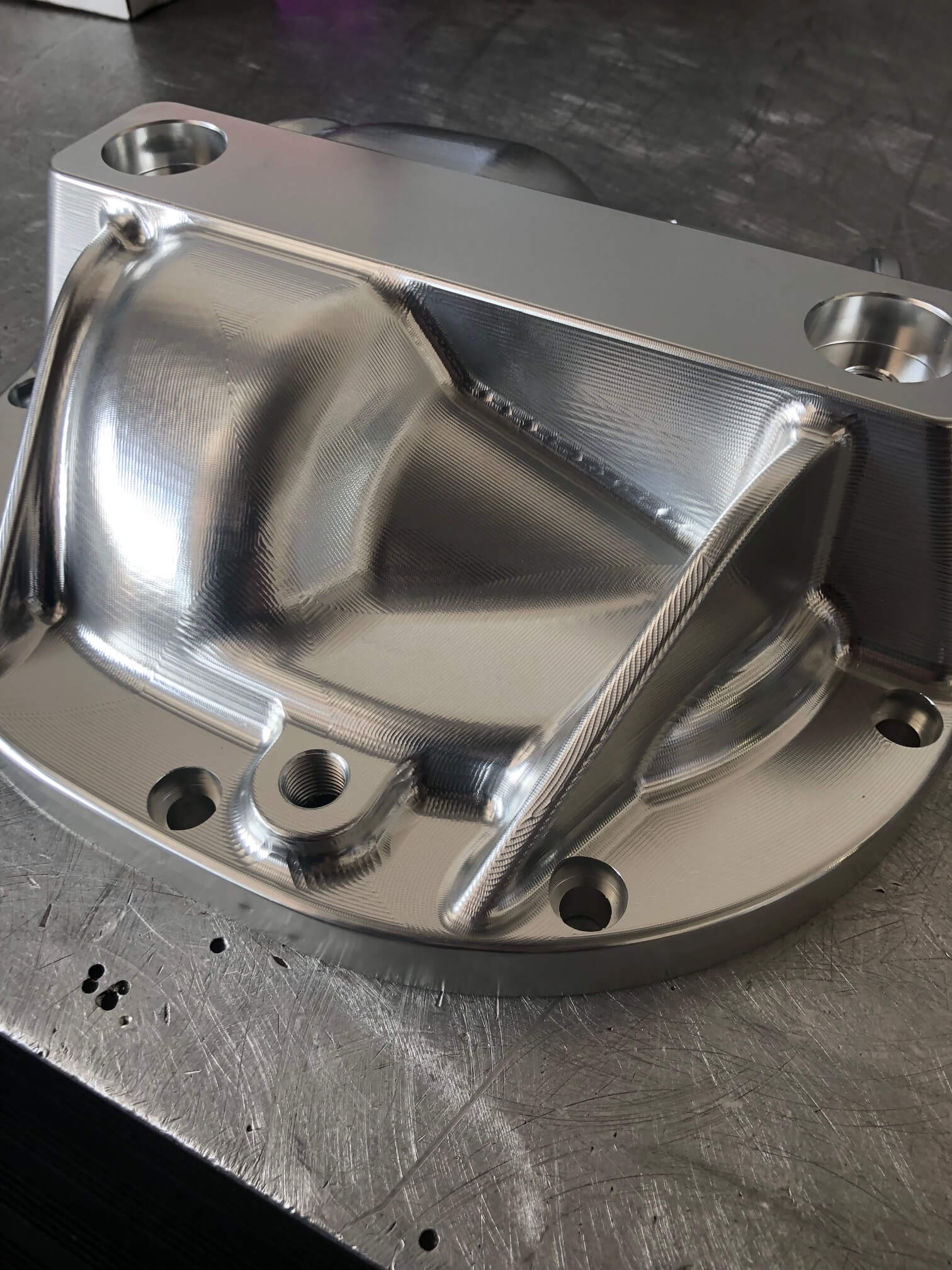

upr products billet differential cover

Cast aluminum vs Billet aluminum

Cast aluminum components are created by pouring molten aluminum into a mold. Once the molten aluminum solidifies, it can be removed from the mold and a raw cast aluminum part is made. Casting aluminum parts can be very labor intensive because of the time it takes to create molds, remove the casting from the mold and refine the final product.

Cast aluminum parts can be susceptible to breaking under intense loads if there are imperfections during the molding or refining processes.

Billet aluminum components are formed in a different manner than cast aluminum. To more thoroughly understand, I need to explain that “billet” is a solid piece of extruded material. In this case, I am talking about a solid piece of aluminum. A solid piece of aluminum can be used on a CNC machine to cut out high quality products without the need for expensive tooling and refinement processes.

While creating products from billet material isn’t ideal for mass production like casting is, billet products are usually much stronger and more refined. Now that you have all of that information, let me tell you about the product you’re here to learn more about!

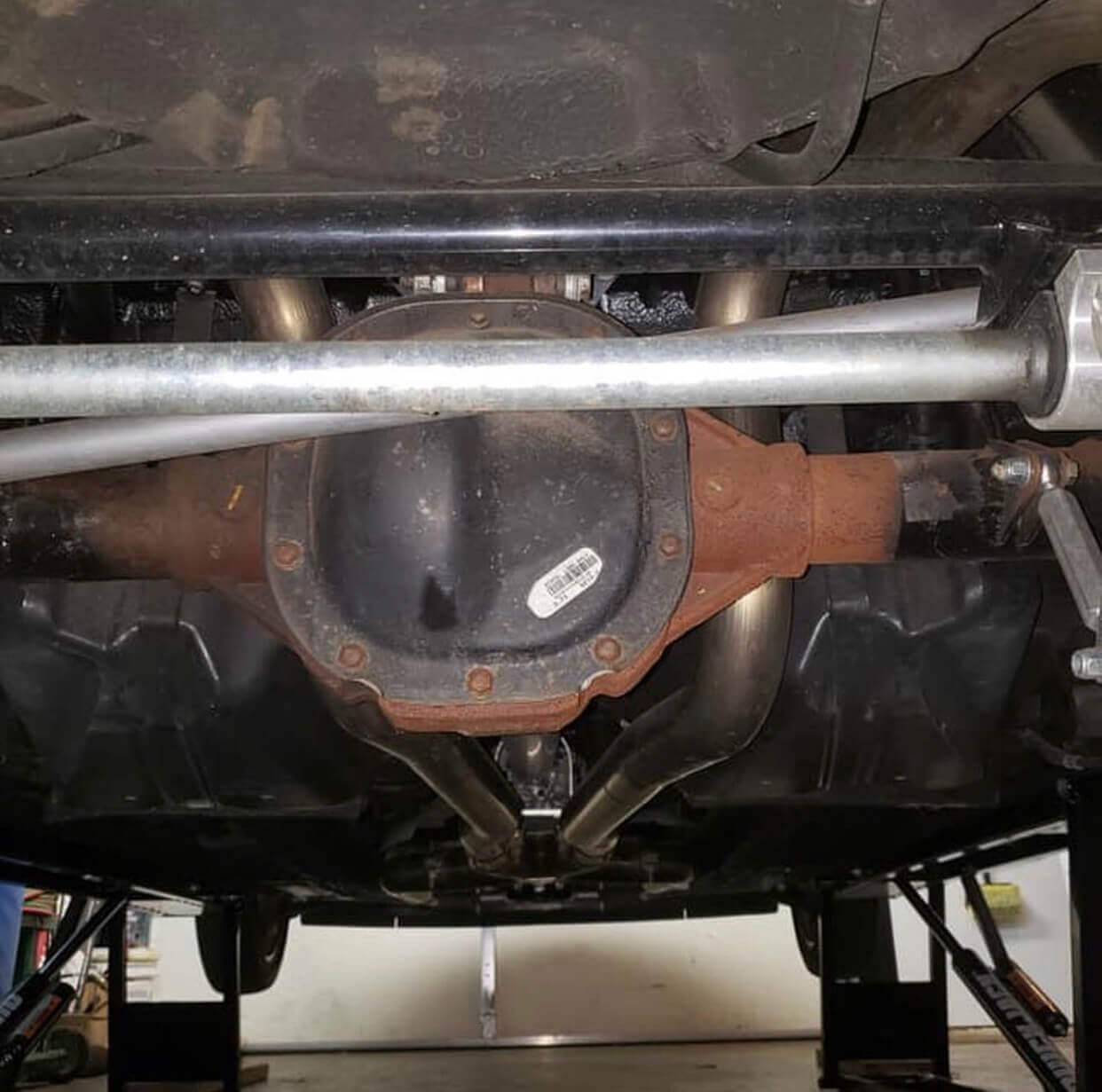

Stock 2012 Mustang GT stamped steel differential cover.

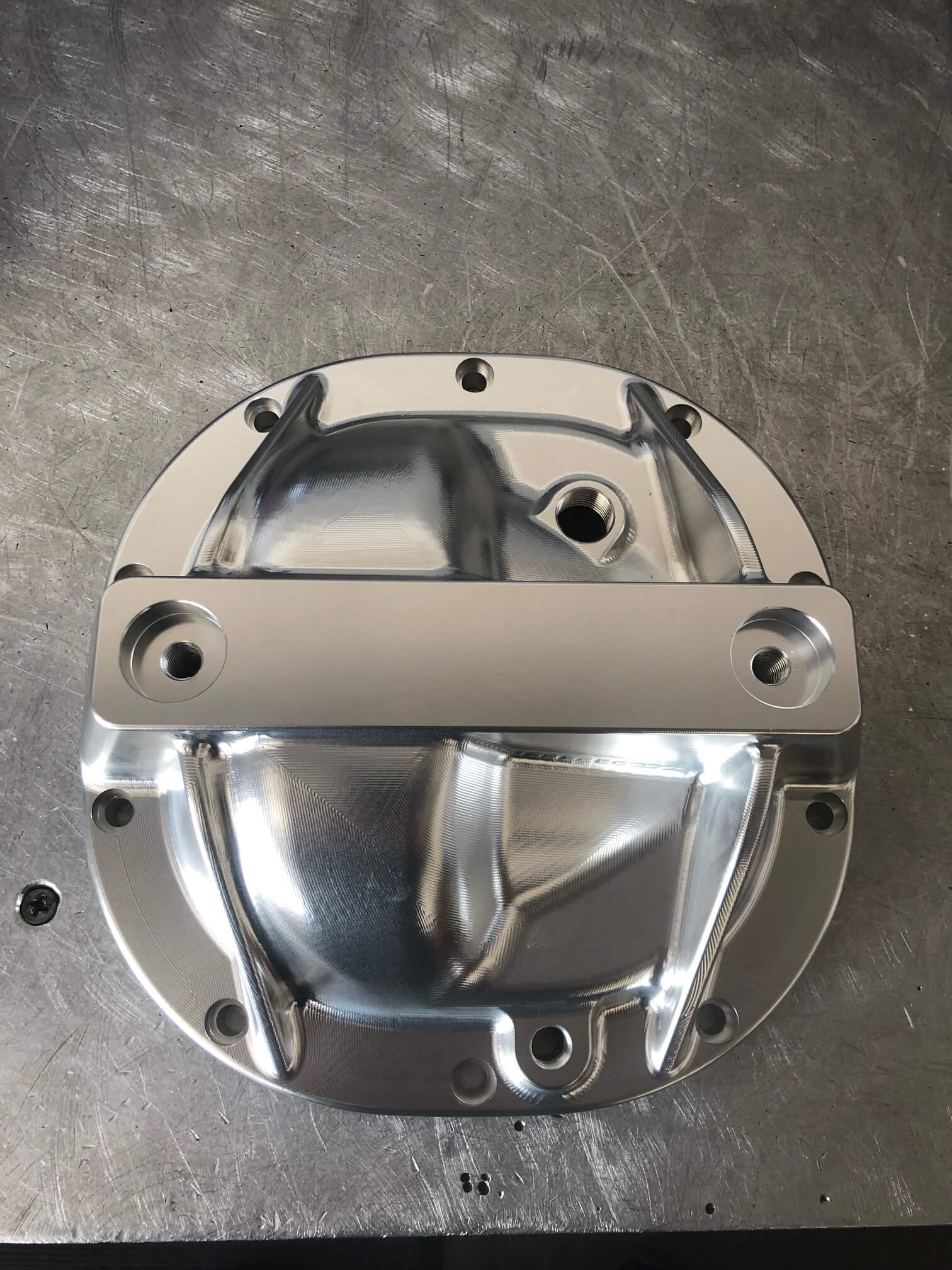

upr products billet differential cover

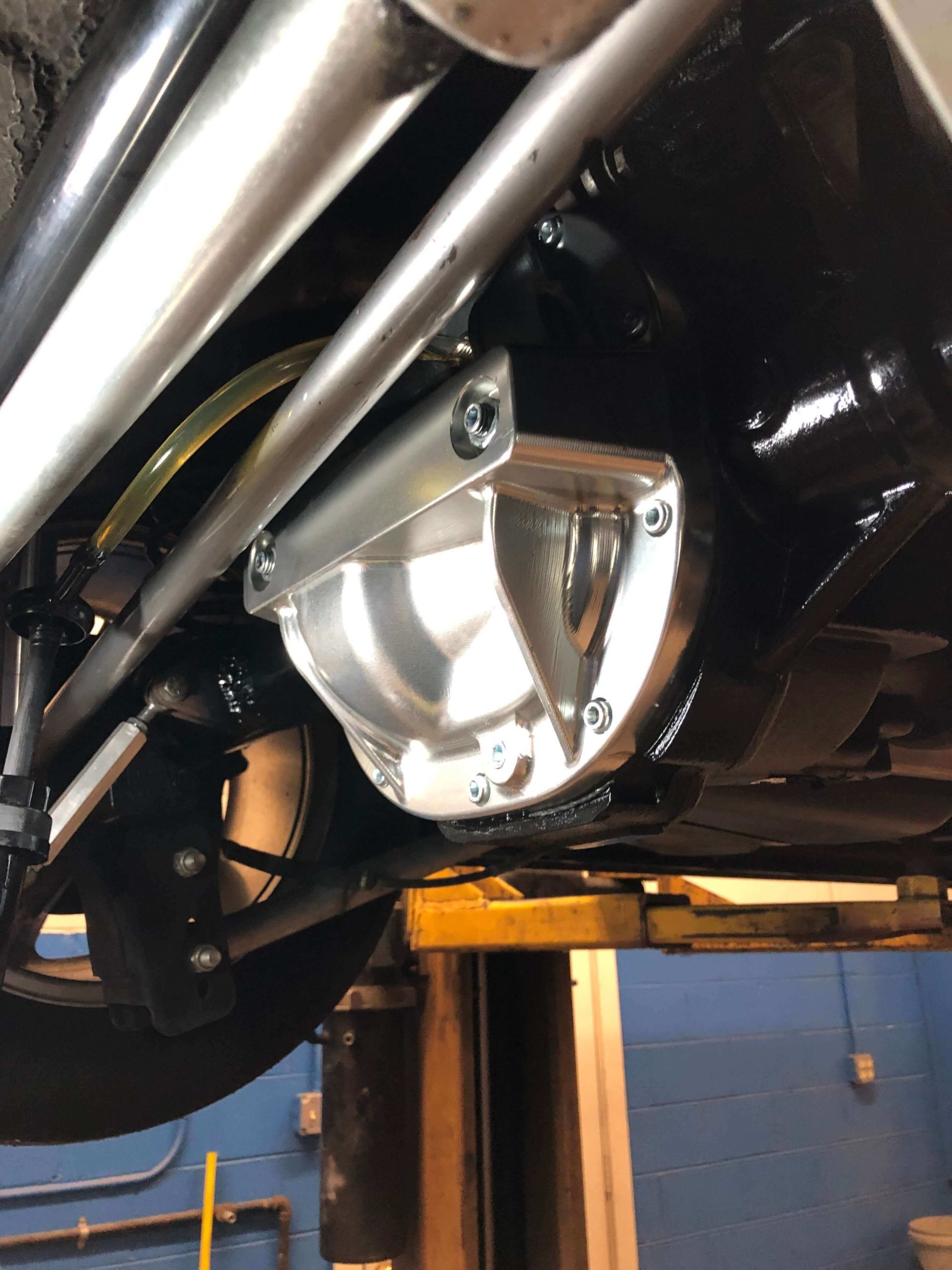

Justin, @jaygray757, shared some images of the UPR Billet Differential Cover installed on his 2012 Mustang GT.

The UPR Difference!

UPR Products has been heavily involved in the drag racing scene for many years. Usually, when you’re drag racing higher horsepower Mustangs, things tend to start breaking. UPR has always strived to provide the best quality parts with the racer in mind.

UPR’s Billet Differential Cover strengthens the rear end of your Mustang by adding more support for the differential bearing caps. This added support will allow the rear end to resist deflection under high loads of horsepower. It is made from 6061 Billet Aluminum and is available in two finish options: Satin Machined or Black Anodized.

Not only does UPR’s Billet Differential Cover strengthen your rear end, but it also looks good while doing so. UPR has integrated a fill and drain port to make adding or draining axle fluid a breeze.

If you would like to get more information or purchase one of these for your Mustang, please visit this LINK.

upr products billet differential cover

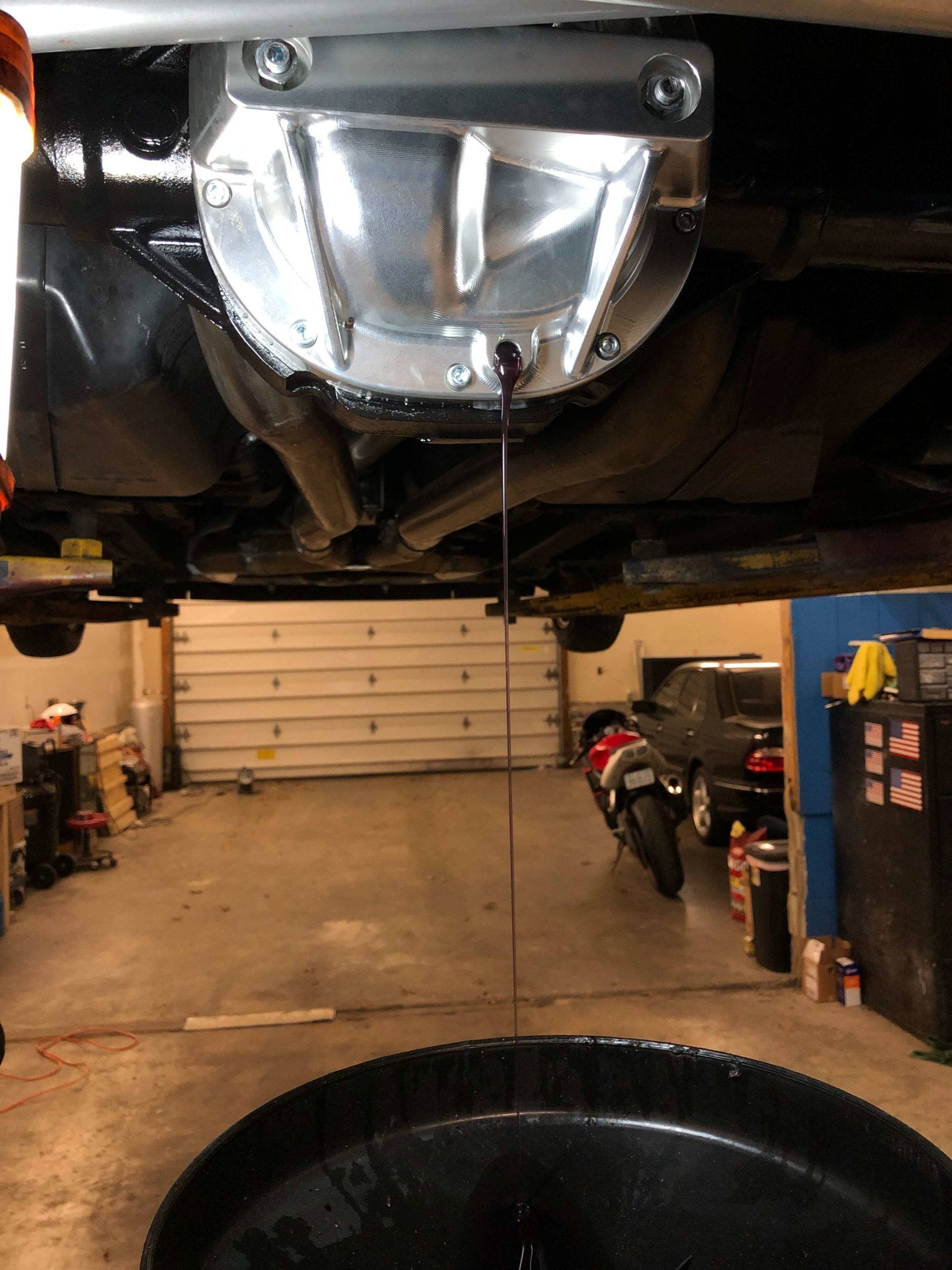

Justin showing us how easy it is to drain fluid, on his freshly installed UPR Billet Differential Cover. (Product shown on a 2012 Mustang GT)

upr products billet differential cover

Adding fluid to the rear diff. with UPR Products Billet Differential Cover installed.  (Product shown on a 2012 Mustang GT)

Author Jaron Cole

I've been around the Sun 27 times. I'm a Mustang owner (2015 ROUSH inspired S550), automotive enthusiast and photographer! Oh, and I have a thing called Mustang Fan Club, you may have heard of it.

More posts by Jaron Cole
